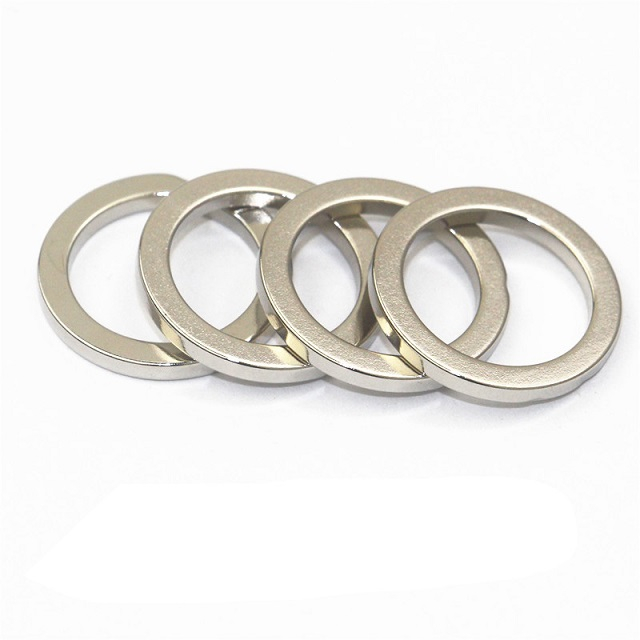

Sintered Super Strong N54 Magnet Ring

Sintered Super Strong N54 Magnet Ring

Sintered neodymium-iron-boron (Nd-Fe-B) magnets are licensed rare earth magnets which are the most powerful commercialized permanent magnets available today, with maximum energy product ranging from 26 MGOe to 52 MGOe. Neodymium Iron Boron is the third generation of permanent magnet developed in the 1980s. It has a combination of very high remanence and coercivity and comes with a wide range of grades, sizes and shapes. With its excellent magnetic characteristics Nd-Fe-B offers  flexibility for new designs or as a replacement for traditional magnet materials such as ceramic, Alnico and Sm-Co for achieving higher efficiency and more compact devices.

A powder metallurgy process is used in producing sintered Neodymium magnets. Although sintered Neodymium is mechanically stronger than Samarium Cobalt magnets and less brittle than other magnets, it should not be used as a structural component. Selection of Nd-Fe-B is limited by temperature due to its irreversible loss and moderately high reversible temperature coefficient of Br and Hci. The maximum application temperature is 200 °C for high coercivity grades. Nd-Fe-B magnets are more prone to oxidation than any other magnet alloys. If Nd-Fe-B magnet is to be exposed to humidity, chemically aggressive media such as acids, alkaline solutions salts and harmful gases, coating is recommended. It is not recommended in a hydrogen atmosphere.

Magnetic direction
