Product Description

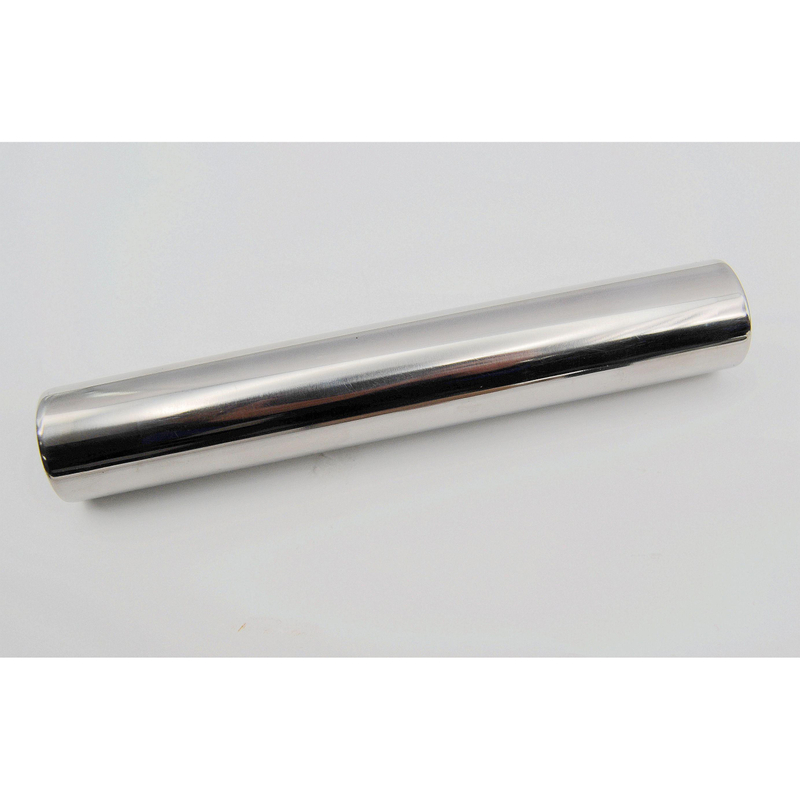

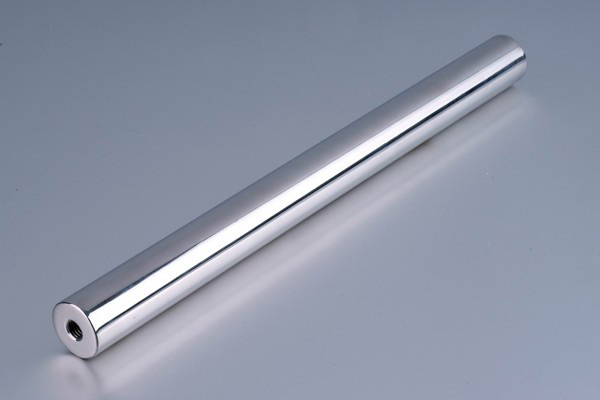

| Product Name | 12000 Gauss Stainless Steel Stainless Steel Magnetic Tube |
| Working Tempereture | 80-350°C |
| Surface Gauss | up to 14000Gs |
| Outer Diameter | D16-D100mm |
| Length | Customized |
| Stainless Steel Tube | SS304 /316/316L |
| Application | Water treatment,Chemical industry,Food, drink and tobacco industry,Recycling industry,Plastics production,Ceramic industry,Pharmaceutical industry,Other liquid(hydro- material) separation applicationHigh power,designed with NdFeB magnets |
| Package | Standard Export Package or customized size |
How to Design the Size of Magnetic Tube?
1. Diameter: Diameters are in a series. The relationship between the diameter and max. gauss value is as below:
| Diameter | 6000Gs | 7000Gs | 8000Gs | 10000Gs | 11000Gs | 12000Gs | 1400Gs |
| Ø16 | √ | ||||||
| Ø19 | √ | √ | |||||
| Ø22 | √ | √ | √ | ||||
| Ø25 | √ | √ | √ | √ | √ | √ | √ |
| Ø28 | √ | √ | √ | √ | √ | √ | |
| Ø32 | √ | √ | √ | √ | √ | √ | |
| Ø38 | √ | √ | √ | √ | √ | √ | |
| Ø50 | √ | √ | √ | √ | √ | √ | √ |
| Ø63 | √ | √ | √ | √ | √ | √ | √ |
| Ø100 | √ | √ | √ | √ | √ | √ |
* recommended diameter is Ø25mm(1″)
How to Design the Installation?
How magnetic tubes works
A magnetic tube made of a stainless steel tube, polar plates,end-plugs, and permanent magnets. The higher the surface gauss of the tube, the higher the price.
Application
Advantage
Mirror Polished RA=0.6MM Seamless Steel Pipe
zero leakage and waterproof
Warranty: Demagnetization ＜8% under Super Hardness,indeformable
normal working temperature for 1 year

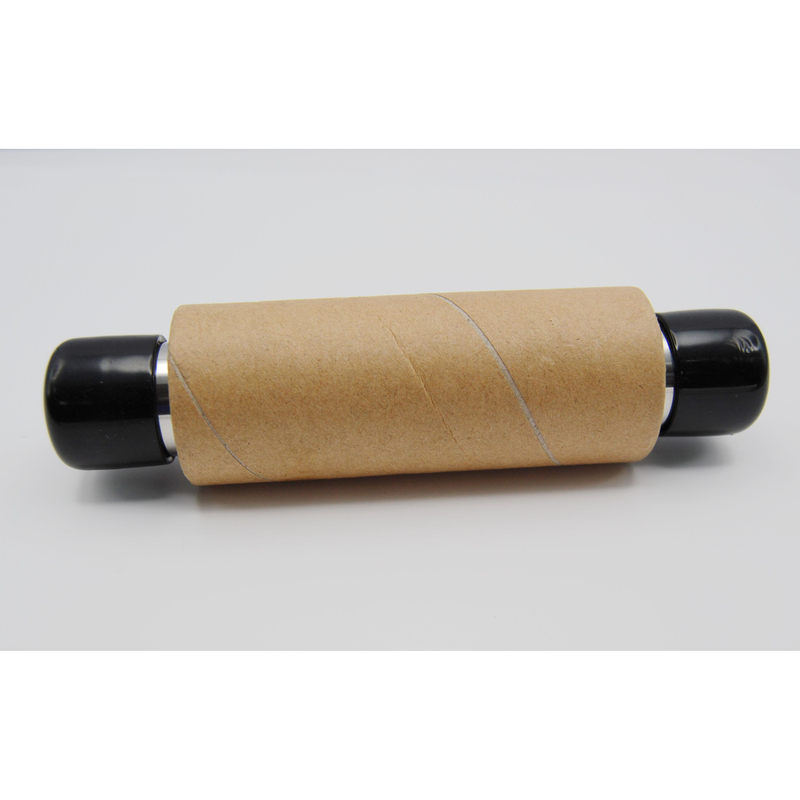

Packing
